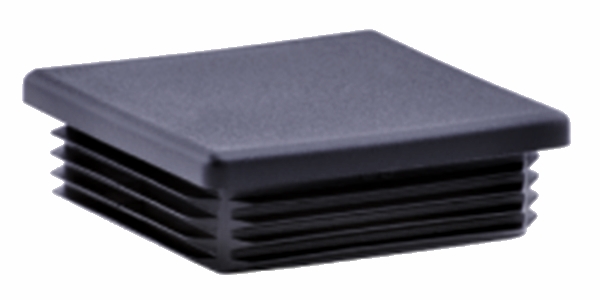

Kvadratiniai, įkalami kamščiai
kodas: ILQ
medžiaga: PE-LD
standartinė spalva: juoda, pilka, balta
| Kodas | Matmenys, mm | Vamzdžio sienelės storis, mm | |||
|---|---|---|---|---|---|
| D | h | H | Min. | Max. | |
| ILQ10 | 10x10 | 4 | 12 | 0.8 | 2.5 |
| ILQ12 | 12x12 | 4 | 12 | 1 | 2 |
| ILQ13 | 13x13 | 4 | 12 | 0.5 | 2 |
| ILQ15 | 15x15 | 3 | 14 | 1 | 2 |
| ILQ16 | 16x16 | 5 | 11.5 | 1 | 2.5 |
| ILQ18 | 18x18 | 5 | 11.5 | 1.5 | 3 |
| ILQ19 | 19x19 | 5 | 11.5 | 1.2 | 2.9 |
| ILQ20 | 20x20 | 5 | 11.5 | 1 | 3 |
| ILQ22 | 22x22 | 5 | 12 | 1 | 3.5 |
| ILQ22+3.5 | 22x22 | 5 | 11.5 | 3.5 | 4 |
| ILQ22+4.5 | 22x22 | 5 | 11.5 | 4.5 | 5 |
| ILQ22+5 | 22x22 | 5 | 11.5 | 5 | 5.5 |
| ILQ25 | 25x25 | 5 | 11.5 | 1 | 3 |
| ILQ25+3 | 25x25 | 5 | 11.5 | 3 | 3.5 |
| ILQ25+4 | 25x25 | 5 | 11.5 | 4 | 4.5 |
| ILQ25+5 | 25x25 | 5 | 11.5 | 5 | 5.5 |
| ILQ25,4 | 25,4x25,4 | 5 | 11.5 | 1.2 | 3.2 |
| ILQ28 | 28x28 | 5 | 11.5 | 1 | 3 |
| ILQ30 | 30x30 | 5 | 11.5 | 1 | 3 |
| ILQ30+2.5 | 30x30 | 5 | 11.5 | 2.5 | 4.5 |
| ILQ32 | 32x32 | 5 | 11.5 | 1 | 3.5 |
| ILQ34 | 34x34 | 5 | 14.5 | 1 | 3 |
| ILQ35 | 35x35 | 5 | 14.5 | 1 | 3 |
| ILQ35+2.5 | 35x35 | 5 | 12 | 2.5 | 5 |
| ILQ38 | 38x38 | 5 | 14.5 | 1 | 3.5 |
| ILQ40 | 40x40 | 5 | 14.5 | 1 | 3 |
| ILQ40+3 | 40x40 | 5 | 14.5 | 3 | 5 |
| ILQ40+4 | 40x40 | 5 | 14.5 | 4 | 4.5 |
| ILQ40+5 | 40x40 | 5 | 14.5 | 4.5 | 5.5 |
| ILQ45 | 45x45 | 5 | 14.5 | 1 | 3 |
| ILQ45+3 | 45x45 | 5 | 14.5 | 3 | 5 |
| ILQ48 | 48,3x48,3 | 5 | 14.5 | 1 | 2.5 |
| ILQ48+2.5 | 48,3x48,3 | 5 | 14.5 | 2.5 | 4.5 |
| ILQ50 | 50x50 | 5 | 14.5 | 1 | 2.5 |
| ILQ50+2.6 | 50x50 | 6.5 | 25 | 2.6 | 4 |
| ILQ50+3.5 | 50x50 | 5 | 14.5 | 3.5 | 6 |
| ILQ50.8 | 50,8x50,8 | 5 | 14.5 | 1.2 | 3.2 |
| ILQ52 | 52x52 | 5 | 14 | 1.5 | 3.5 |
| ILQ55 | 55x55 | 5 | 14.5 | 2 | 4.5 |
| ILQ57.2 | 57,2x57,2 | 4 | 14.5 | 1.5 | 3 |
| ILQ60 | 60x60 | 5 | 24 | 1.5 | 3.5 |
| ILQ60+3 | 60x60 | 6.5 | 17.5 | 3 | 5 |
| ILQ63.5 | 63,5x63,5 | 6 | 21 | 1.5 | 4 |
| ILQ65 | 65x65 | 5 | 21 | 1 | 3 |
| ILQ70 | 70x70 | 5 | 19 | 2 | 5 |
| ILQ75 | 75x75 | 6 | 21 | 2 | 4.5 |
| ILQ76.2 | 76,2x76,2 | 6 | 21 | 2.5 | 5 |
| ILQ80 | 80x80 | 6 | 21 | 1.5 | 4 |
| ILQ80+3 | 80x80 | 8 | 24 | 2.5 | 5 |
| ILQ80+4 | 80x80 | 6 | 21 | 4 | 7 |
| ILQ82,6 | 82,6x82,6 | 6 | 21 | 2 | 4.5 |
| ILQ88.9 | 88,9x88,9 | 6 | 21 | 2 | 4 |
| ILQ90 | 90x90 | 6 | 25 | 3 | 5 |
| ILQ95 | 95x95 | 6 | 21.5 | 3.5 | 5.5 |
| ILQ100 | 100x100 | 7 | 24 | 1 | 4 |
| ILQ100+5 | 100x100 | 7 | 24 | 5 | 8 |
| ILQ101.6 | 101,6x101,6 | 6 | 24 | 2.5 | 5.5 |
| ILQ110 | 110x110 | 6 | 24 | 3 | 5 |
| ILQ114.3 | 114,3x114,3 | 6 | 24 | 2.5 | 5.5 |
| ILQ120 | 120x120 | 5 | 25 | 2.5 | 6 |
| ILQ125 | 125x125 | 5 | 25 | 3 | 6 |
| ILQ140 | 140x140 | 6 | 34 | 4 | 7 |
| ILQ150 | 150x150 | 6 | 27 | 5 | 8 |
| ILQ150+10 | 150x150 | 6 | 27 | 10 | 12.5 |
